Does Ketryx Support Multiple Traceability Matrices?

Jenn Dixon
Jenn Dixon
  • Updated

Yes, Ketryx can support multiple traceability models and matrices. Organizations often maintain multiple discipline-specific traceability areas, such as usability, system engineering, biocompatibility, risk management, labelling, etc.



Three advanced settings are key to meet your organization's traceability needs:

  1. Project item configuration Traceability configuration
    • Allows for full customization of traceability views: traceability columns, relationships, test evidence, check calculations, warning messages and items under trace.
  2. Project item configuration Additional traceability configurations

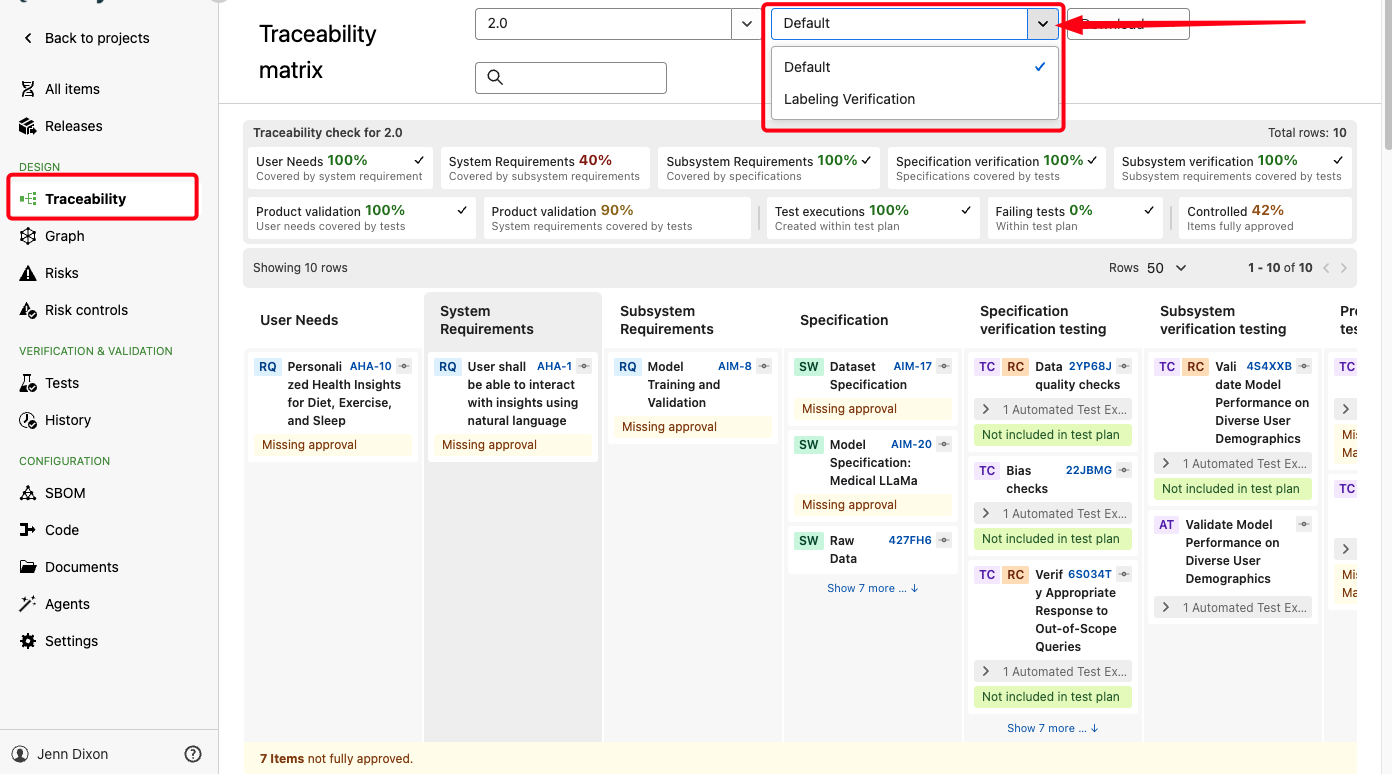

    • Allows additional Traceability views from the Traceability user interface menu
  3. Document configuration Requirements Traceability Matrix
    • Affects what matrices can be queried by the templating engine for document generation

More information on how to configure a traceability matrix can be found here: https://docs.ketryx.com/reference/traceability-configuration

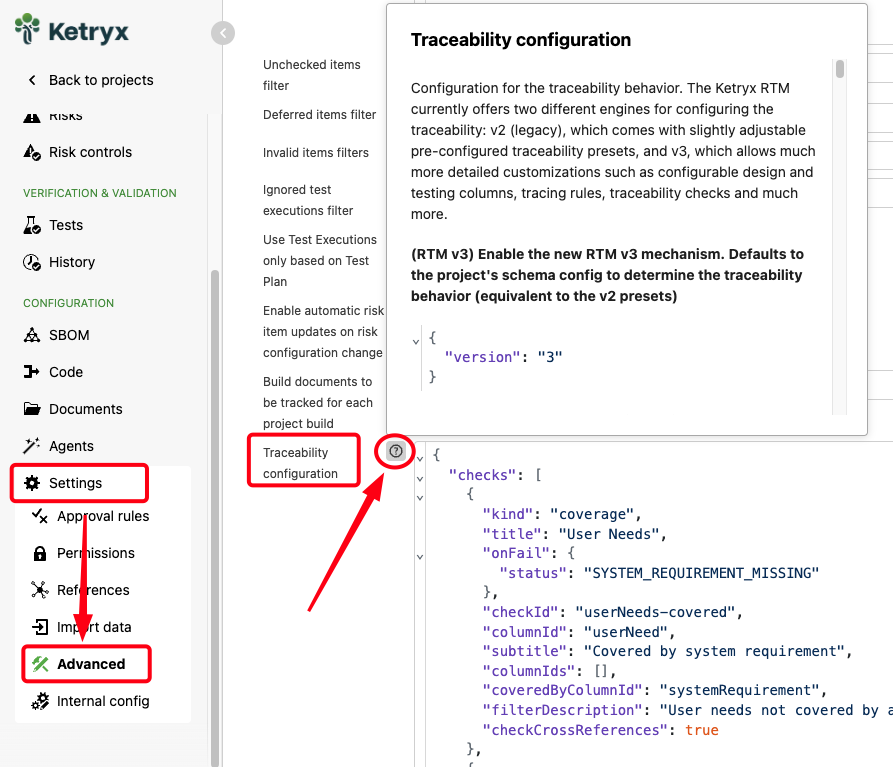

These settings are found in the project and organization advanced settings. Clicking on the (?) will provide additional configuration information for that setting, as shown below:

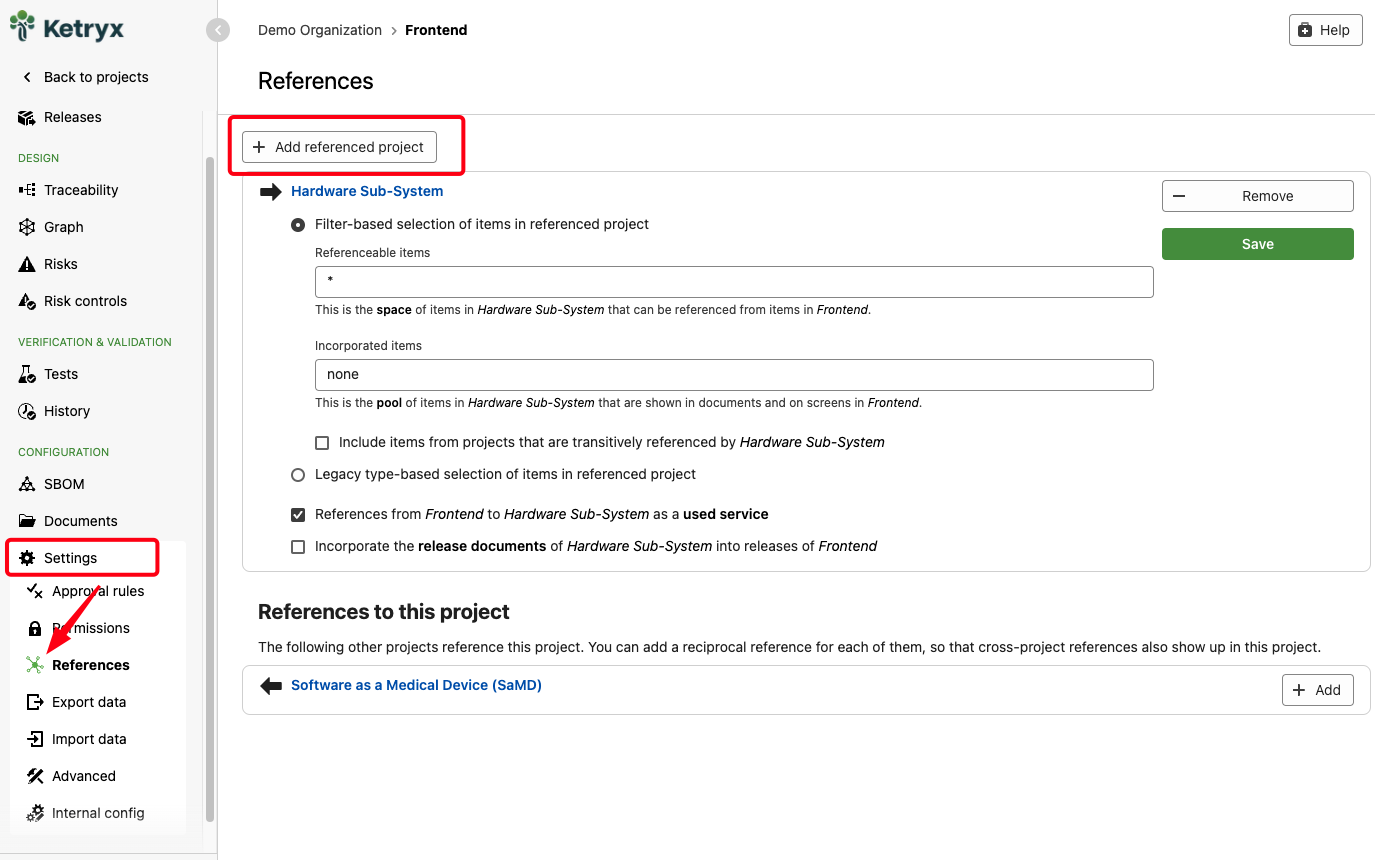

Cross-project referencing can enhance traceability models operating in the subspace of a larger traceability model and leverage artifacts from multiple external projects. This is enabled at the project-level settings (see below). For more information, see: https://docs.ketryx.com/manuals/man-01-ketryx-lifecycle-management#id-5.7.1.-cross-project-references
